Fiber Optic Rotary Joints

Fiber Optic Rotary Joints

  • No contact and friction, long life, up to 10 million rpm (more than 100 milion rpm for signal channel )
  • Can combine with multiple signals such as video, series, and Ethemet signal, etc.
  • Wse optical fiber to transmit information, no leakage, no electromagnetic interference; can transmit tens of hundreds of kilometers of networking applications over long distances
  • The transmision bandwidth is much larger than the electrical connector, and it can be used to double the bandvidth with the wavelength division multiplexer.
  • Small in volume and light in weight that is easy to integrate with electric slip ring, and system is easy to upgrade and change
  • Providing the world's smallest single-channel fiber optic rotary joint, as well as double-channels, four-channels. ten-channel or even more cnannel for your opton
  • Providing photoelectric integrated rotary joint

JINPAT fiber optic rotary joints (FORJ) are designed for high-precision, high-speed optical signal transmission with minimal loss and interference. Supporting both single-mode and multi-mode fiber, they ensure reliable data transfer in demanding applications such as radar systems, satellite communication, high-definition video transmission, medical devices, and industrial automation. Featuring low insertion loss, high return loss, and multi-channel options, JINPAT FORJs provide exceptional performance in harsh environments. Customizable designs are available to meet specific operational requirements, delivering optimal efficiency and reliability.

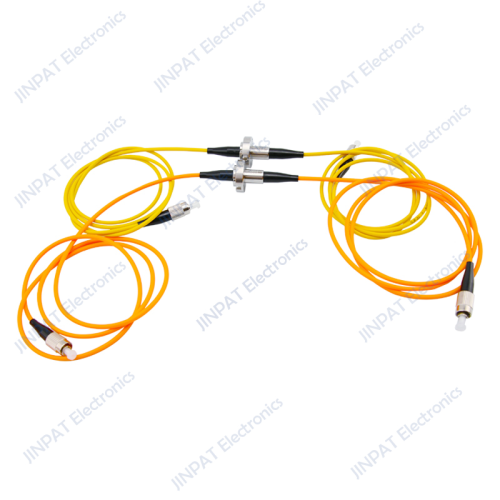

Fiber Optic Rotary Joints LPFO-01~07

Fiber Optic Rotary Joints LPFO-01~07

JINPAT fiber optic rotary joints ensure lossless, high-speed data transmission across rotating interfaces, protecting fibers from mechanical stress while maintaining signal integrity.
  • Number of Circuits: 1~40（optional）
  • Wavelength range: 650-1650nm （ customized）
  • Insertion loss: Single-Channel＜2dB multi-channel＜4dB 8-40Channel ＜5dB
  • Insertion loss ripple: Single-Channel＜0.5dB multi-channel＜2dB
  • Return Loss ＞40dB

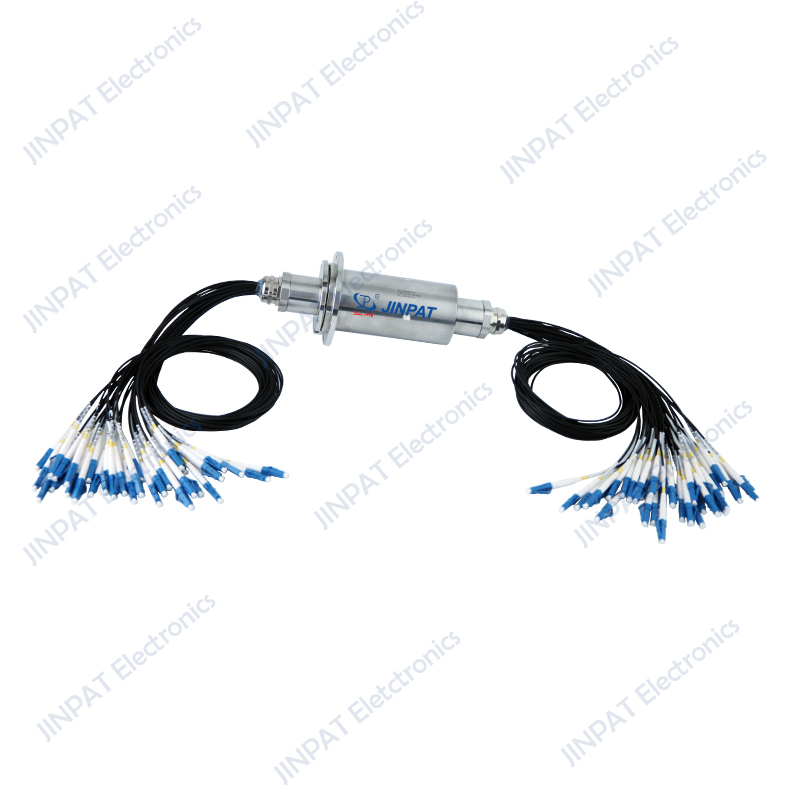

Fiber Optic Rotary Joints LPFO-19B

Fiber Optic Rotary Joints LPFO-19B

The LPFO-19B fiber optic slip ring ensures stable signal and energy transmission, improving efficiency and safety in cable drum operations.
  • Model Code：LPFO-19B
  • Joint type：ST/FC/SC/LC,etc
  • Operating wavelength:850-1550
  • Dimension:/
  • Insertion loss:≤5dB

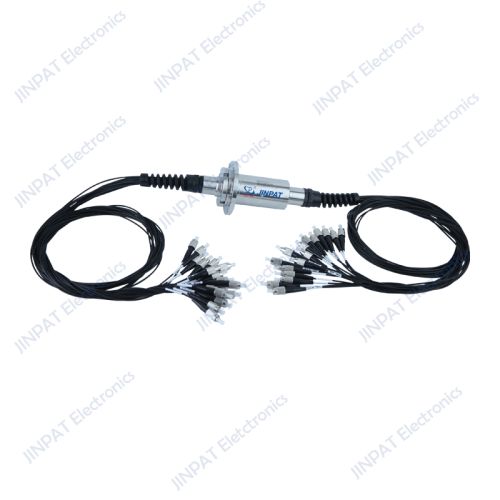

Fiber Optic Rotary Joints LPFO-37A

Fiber Optic Rotary Joints LPFO-37A

The LPFO-37A fiber optic slip ring ensures seamless data transmission for large cable drums and marine cranes, delivering stability and efficiency in harsh environments.
  • Model Code：LPFO-37A
  • Joint type：ST/FC/SC/LC,etc
  • Operating wavelength：850-1550
  • Dimension：/
  • Insertion loss：≤5dB
